Many thanks to Gai Cullen from The Permaculture Research Institute of Kenya http://www.pri-kenya.org for flying and providing the research area and many thanks as well to Natalie Topa for organizing the tree (acacia xanthopholea) and grass (enteropogon macrostachyus and cenchrus ciliaris) seedballs for this test in Athi River.
To test a few various ways of dropping the seedballs we used a KitFox recreational aircraft - (0.5hours flight time @ 70$ running cost per hour) to drop 30kgs of seedballs (appx. 15,000seeds) along a 200 meter or so stretch on the top ridge of a new dam that was recently built on the farm.
This method shows good potential for targeted restoration for areas in the drylands where intense charcoal making/bush clearing has occurred especially around hard to reach low altitude hills.
We will continue researching costs and best practices for this type of aerial seed application and we will follow up on this site in 6 months to a year depending on rains to see what has grown.
You can learn more about this budding area of research into aerial seed application in East Africa from http://treeseedlist.blogspot.co.ke/20... and also http://www.seedballskenya.com
Who came up with biochar seedballs and where does the charcoal dust that makes up the seedballs come from?
It is a very interesting story that spans back to the birth of Nairobi City.
''The history of charcoal use in Nairobi goes back over 100 years and since the founding of the ''Green City in the Sun'', charcoal and firewood have been the main energy source used to power its growth.
No one knows exactly when charcoal became a popular household fuel in Kenya. But it seems to have become a common fuel with the advent of urbanization and the arrival of the traditional metal charcoal stove introduced to the Kenyan interior about 90 years ago from India. According to information from charcoal-makers, charcoaling, especially in the coastal and central regions of Kenya, became an income-generating activity as far back as 1915 and was highly commercialized in the 1950s.
In subsequent decades, charcoal-making grew in magnitude and geographical spread, as urbanization accelerated and country roads improved. The trade spread to the Rift Valley, Western Kenya and finally to remote arid and semi-arid zones of the northern region. Until the late 1970s, the raw materials for charcoal seemed inexhaustible, being ubiquitous and available at virtually no cost. Government forest reserves, open rangelands, upland watershed zones, and lowland semi-arid areas became the main sources of the fuel.
Over the years, the key dynamic factors behind the expansion of the industry have been an accelerating urban growth, agricultural land clearing, and sector profitability, especially for dealers.
Today charcoal is still a key bio-energy resource in Kenya, providing domestic energy for 82% of urban and 34% of rural households. The charcoal industry also creates jobs for wood producers, charcoal producers, transporters and vendors.
The industry reportedly employs almost 1 million people on a part and full-time basis across the value chain. It saves millions of shillings in foreign exchange. And in spite of its significance, the charcoal sector continues to bear a negative image and remains largely informal, thus limiting its potential to attract meaningful investment.
The Energy and Forestry Policies and Acts have recently legalized sustainable charcoal production, and efforts are underway by government agencies, including the Kenya Forest Service (KFS), and the Ministry of Energy (MoE), to take forward the implementation of this legislation.
At least 750,000 kg of rough unprocessed lump wood charcoal is consumed within Nairobi daily, and of that amount 15% is dust, fines and chips - charcoal vendor's waste.This salvaged charcoal waste is the dust we use to make the seedballs.
This is where charcoal vendor's waste meets tree seeds to produce seedballs using production techniques developed by Chardust Ltd. (www.chardust.com) who are responsible for seedball production and, some 20 years ago, started what is now a thriving industry in East Africa: Manufacturing eco-friendly briquettes from salvaged charcoal vendor's waste. Chardust started cleaning up the charcoal dust waste from some of the highest-density and lowest-income urban areas of Nairobi in 1996. And now in 2017 there are some 50 briquetting facilities of various sizes and sophistication who have followed Chardust's lead and methods. Chardust Ltd. is happy to see that most of this 'waste' is no longer wasted. VWB- Vendor's Waste Briquettes- are now part of the charcoal value chain.
Elsen, the Director of Chardust Ltd had discovered that beneath every long-established charcoal sales area, scattered throughout most of Nairobi, there were literally thousands of tons of well-preserved discarded charcoal dust 'waste'- some of it dating back to the early 1900's as evidenced by old coins recovered while cleaning up the sites.
Teddy, the Sustainability Manager at Cookswell Jikos Ltd. (www.cookswell.co.ke) had been researching how to lower the cost of dryland reforestation for years.
And now, with their efforts and yours, the seed-to-ash woodfuel circle is complete with the use of salvaged urban biochar to protect and nourish seeds delivered to areas that were, in most cases, deforested years ago creating the charcoal dust that we use.''
Before (May 2017) and after (July 2018) photos of one of the very first test plots in Southern Kajiado on a fence line of a farm near Mile 46 Trading Center. Unfortunately the brush is currently to thick and thorny to do a proper count of how many trees have come up but we counted out 52 acacia yellow fever trees that were between 1 and 4 feet tall on only about 100meters on the Eastern fence line! The West side of the fence line was very rocky and flooded out during the last rains so we will try look for some at the bottom of the farm later as well. Clearing is underway and we cant wait to go back to count them all properly!
These kids have the right idea! Using traditional style #slingshots they can launch 1/4kg (about 150 #seedballs) at once at deforested areas of #HomaBay County! Thanks very much to Brian for these great photos!
A million thanks to the #BunduRoversClub Kenya for the update on our charcoal baking oven that you took all the way up to the Good Shepard Catholic Mission in #NorthHorr during your #desertdriveagainsthunger last month
World Vision Kenya's Dryland Development - Farmer Managed Natural Regeneration project near Matuu Town, purchased and spread a mix of our biochar seedballs on one of their community owned and managed sites in November 2017.
Here are some photos of before and after the rains!
We broadcast spread 50kgs of Eragrostis superba grass seedballs and also 5kgs of mixed sesbania sesban, acacia seyal, acacia xanthopholea and acacia tortillis seedballs as well.
The site is looking amazing today after these recent heavy rains - we counted out over 100 sesbania trees and dozens of our acacia seedlings as well!
The Masai Love Grass (Eragrostis superba) is producing seed and this 1 acre test plot will provide the first seedbank for the local farmers for planting back on their own farms.
We are thrilled with the progress of this small test plot and will be visiting it often and will keep you updated once we conduct a more thorough analysis and count of the all of the trees.
Sustainable Charcoal Making and Value Addition for Improved Rural Livelihoods and Nutrition -Turkana East 2017
BACKGROUND: COOKSWELL AND BAREFOOT SOULUTIONS
Barefoot Permaculture has designed and created an outstanding demonstration permaculture farm in Turkana East near Lokichar. We were invited up to the farm last November to help train their staff on how to sustainably prune tree branches to make eco friendly charcoal for baking and cooking the farm produce. We also conducted a training session on how to make wood vinegar by condensing the smoke during the charcoal making process to make an organic pest control agent.
The current charcoal making industry and techniques around Nakukulas Village Turkana East: The charcoal industry in and around Nakukulas Village is a reasonably small but vital business. This is especially true for more vulnerable groups as dry season charcoal making is an important drought coping mechanism that generates much needed emergency income with very little capital expenditure. Traditional charcoal making in this area is heavily reliant on pruning branches from the indigenous dryland trees, mostly the acacia tortilis, or using dead wood from trees that are intentionally bark ringed, burned, or destroyed in floods (see Photo 1). The more common method of charcoal making in this area is to use goat manure, due to the lack of grass and sandy soils, to cover the wood to make a traditional mound type kiln to make charcoal.
Above: Typical charcoal making kiln covered with goat manure
THE ADVANTAGES OF THIS SYSTEM ARE AS FOLLOWS;
1. Flexibility – variable sized kilns can be constructed at a lower cost (from reduced labour) then with other types of traditional earth kilns;
2. High calorific value - Goat manure kilns can create a potentially higher calorific value charcoal than kilns covered in pure soil due the energy provided to the pyrolysis process from the manure itself.
3. Low impact - the traditional tree pruning methods (removing branches and leaving the tree intact) have less impact then clear cutting whole swathes of trees as seen in other parts of Kenya.
THE DISADVANTAGES OF THIS SYSTEM ARE AS FOLLOWS:
1. High smoke production - the process produces very noxious smoke for the kiln operator (much more so then a soil/metal kiln);
2. Labour intensive – hard, dry wood must be cut which requires transportation to the kiln site due to insecurity as well as the transportation of the goat manure;
3. Inefficient combustion – Potential for high loss of charcoal to ash and flare-ups from strong winds (blowing the goat manure off and increasing oxygen flow to the combustion). This scenario is dangerous to livestock and children.
4. Lack of local government recognition - local charcoal producers’ associations can help with upgrading skills of the charcoal producers, better access to markets, and increased exposure to charcoal making technologies and reafforestation practises .
5. Loss of vital soil nutrients - burning manure as well as the growing propensity to kill and use fully grown trees as the demand for charcoal in the growing towns of Kitale, Eldoret, Bungoma and Lodwar increases.
THE SUSTAINABLE CHARCOAL MAKING AND USE DEMONSTRATION
On the 6th of November 2017 we conducted a sustainable charcoal making and value addition course at the Akiro Amana Farm outside of Nakukulas Village.
This included the following activities;

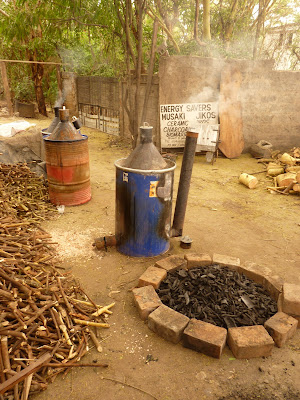

1. How to use and operate a Cookswell charcoal kiln.
2. How to make a batch of charcoal using smaller tree branches and building off cuts.

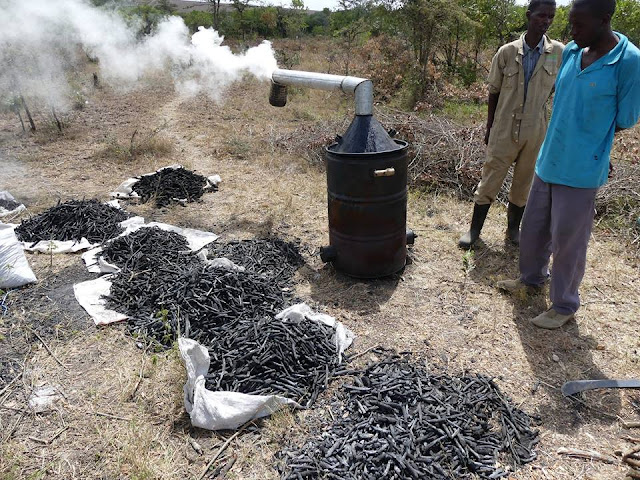

Above: Charcoal making demonstration with the Barefoot Solution team using a Cookswell Jikos kiln.
3. How to harvest wood vinegar (liquid smoke) using the Cookswell Kiln smoke condenser. (See Appendix II for how to use the wood vinegar)
Above: Harvesting wood vinegar (liquid smoke in a Cookswell Kiln.
4. How to coppice trees with correct tools so that one does not damage the trees when processing the feedstock and where/how to cut branches to make charcoal without killing the tree.
Pruning trees for feedstock for the kiln (left) and feedstock after pruning
5. Charcoal and farm produce value addition and improved nutrition using a Cookswell Charcoal Oven to bake, roast or steam food.
Above: Baked quiche and roasted sweet potatoes in a Cookswell Charcoal Oven.
Above: Roasted squash and baked bread in a Cookswell Charcoal Oven using the branch charcoal.
1. We recommend that the charcoal making activity, especially processing the feedstock, undergo a small localized cost/benefit analysis to further investigate true local production costs in regards to labour versus output. To this end I would suggest that the harvesting of branches and cutting them up be timed and the wet and dry weight of the wood and final charcoal and wood vinegar production be recorded over a 6 month period of intensive charcoal production. This data can then be used to extrapolate future industry growth.
2. We highly recommend implementing options for value addition to the charcoal production. For example, opening a small bakery for value addition to the charcoal and to the food crops. A business bakery training course can be organised from the https://amaribakery.com/ based in Nairobi who have had many years experience setting up profitable community based bakeries all over Kenya.
The wood vinegar production also has the potential to be a very lucrative alternative bio-pesticide, seed germination enhancer and food flavouring and meat preservation industry. Further testing of various types of vegetation (especially dry/wet season sap variance in some trees) for multiple uses in the Turkana eco-system and if possible laboratory testing by University of Nairobi/Crop Nuts should be able to provide further insight into this
We would like to extend a very hearty thanks to the whole team at Barefoot Solutions for this very interesting experience demonstrating our products and expertise in a new part of the Kenya.
Keep up the great work!
Come visit us in Turkana for a full hands- on experience on our demonstration farm by applying for ourapprenticeship program here.
SAVE ENERGY – SAVE OUR FORESTS
DON’T CHOP DOWN TREES - JUST USE BRANCHES!
WOOD VINEGAR RESOURCES
What is wood vinegar?
Recovery of chemicals from the vapours given off when hardwood is converted to charcoal was once a flourishing industry. However, as soon as the petrochemical developed, wood as a source of methanol, acetic acid, specialty tars and preservatives became uneconomic. But with the advent of higher prices for organic food and organic living, wood vinegar is making a vigorous globally resurgence.
Wood vinegar is another name for pyroligneous acid and is the crude condensate of smoke that consists mainly of water.
The non-water component consists of wood tars, both water soluble and insoluble, acetic acid, methanol, acetone and other complex chemicals in small amounts. When left to stand, the pyroligneous acid separates into two layers comprising the water insoluble tar and a watery layer containing the remaining chemicals.
Specific Farm Uses for Wood Vinegar:
The Appropriate Technology Association of Thailand recommends the following wood vinegar/water solution rates for various farm uses:
• Repel nematodes – Tomatoes, 1:500 (apply to the base of plants); strawberries, 1:200 (apply to the base of plants); and black pepper vines, 1:1500 (apply in place of water).
• Repel insect pests – Cabbage and Chinese cabbage, 1:1500 (apply in place of water); corn 1:300 (spray onto leaves).
• Control of fungal diseases – Tomato and cucumber, 1:200 (spray onto leaves).
• Control of root rot – Tomato and cucumber, 1:200 (apply to the base of plants).
• Reduce incidence of chili pepper flowers aborting – 1:300 (spray onto leaves).
• Improve flavor of sweet fruits and stimulate development of crops. Mix solution rates of 1:500 to 1:1000. Wood vinegar prevents excessive nitrogen levels, improves plant metabolism and contributes to higher fruit sugar levels.
• Stimulate compost production. A solution rate of 1:100 will help increase the biological activity of various beneficial microbes and can decrease composting times.
• Combat bad odor. A wood vinegar solution of 1:50 will diminish the production of odor-causing ammonia in animal pens.
• Supplement for livestock feed. Mixed with livestock feed at rates of between 1:200 and 1:300, wood vinegar can adjust bacterial levels in the animal digestive tract which improve the absorption of nutrients from feed.
• Enrich garden soil. Use a strong solution of 1:30 to apply to the garden soil surface at a rate of 6 liters of solution per 1m² to enrich the soil prior to planting crops. To control soil-based plant pathogens, use an even stronger rate of application.
Composition and Characteristics of Wood Vinegar
Nikhom reports that wood vinegar yield per metric ton (2200 lbs.) of air dry wood is appx. 314 kg (690.8 lbs.). The product contains approximately200 components.
• Alcohol (methanol, butanol, amylalcohol)
• Acid (acetic, formic, propioinic, valeric)
• Neutral substances such as formaldehyde, acetone, furfural, valerolactone
• Phenols (syringol, cresol, phenol)
• Basic substances such as ammonia, methyl amine, pyridine
He also describes quality wood vinegar as having the following characteristics (most of which may require special laboratory instruments or methodology to determine):
• pH of approximately 3.0
• Specific gravity between 1.005-1.050
• Color ranging from pale yellow to bright brown to reddish brown
• Smoky odor
• Dissolved tar content: less than 3 percent
• Ignition residue: less than 0.2 percent by weight
Your own homemade wood vinegar will vary depending on the feedstock used, moisture content and carbonization time. We recommend you do trials before large scale use.
For more information about wood vinegar - please see these links below:
